Alpha Construction
22,101 lbs
130 hp
1676 mmThe Volvo DD100 asphalt compactor is your versatile performer, providing flexibility to handle varying conditions, widths and applications, from.

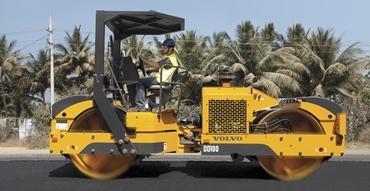

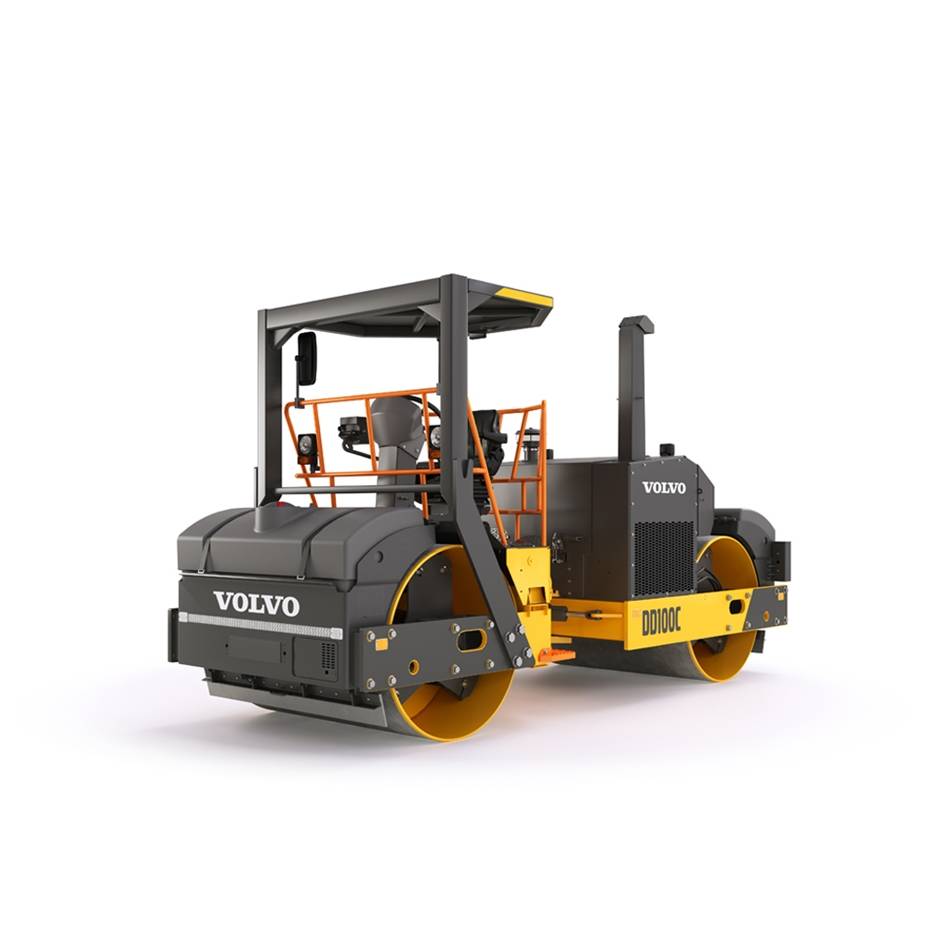

The Volvo DD100 asphalt compactor is your versatile performer, providing flexibility to handle varying conditions, widths and applications, from roadways and large parking lots to airport runways. This machine gives you complete control in choice of amplitudes, frequency and more. The result is a smooth, finished mat achieved with less passes and more profitability.
| Operating weight (with ROPS) | 10,025 kg |
|---|---|
| Drum or rolling width | 1676 mm |
| Rated engine power | 96.9 kW |
| Vibration frequency | 42/31 hz |
| Amplitude | 1.01/0.41 mm |
| Overall length | 5,086 mm |
| Overall width | 1,910 mm |
| Overall height | 2,845 mm |
| Configuration | Vibratory |
IMPERIAL
| Operating weight (with ROPS) | 22,101 lbs |
|---|---|
| Drum or rolling width | 66 in |
| Rated engine power | 130 hp |
| Vibration frequency | 2,502/1,848 v/min |
| Amplitude | 0.04/0.016 in |
| Overall length | 16′ 8.2″ ft in |
| Overall width | 6′ 3.2″ ft in |
| Overall height | 112 in |
| Configuration | Vibratory |
